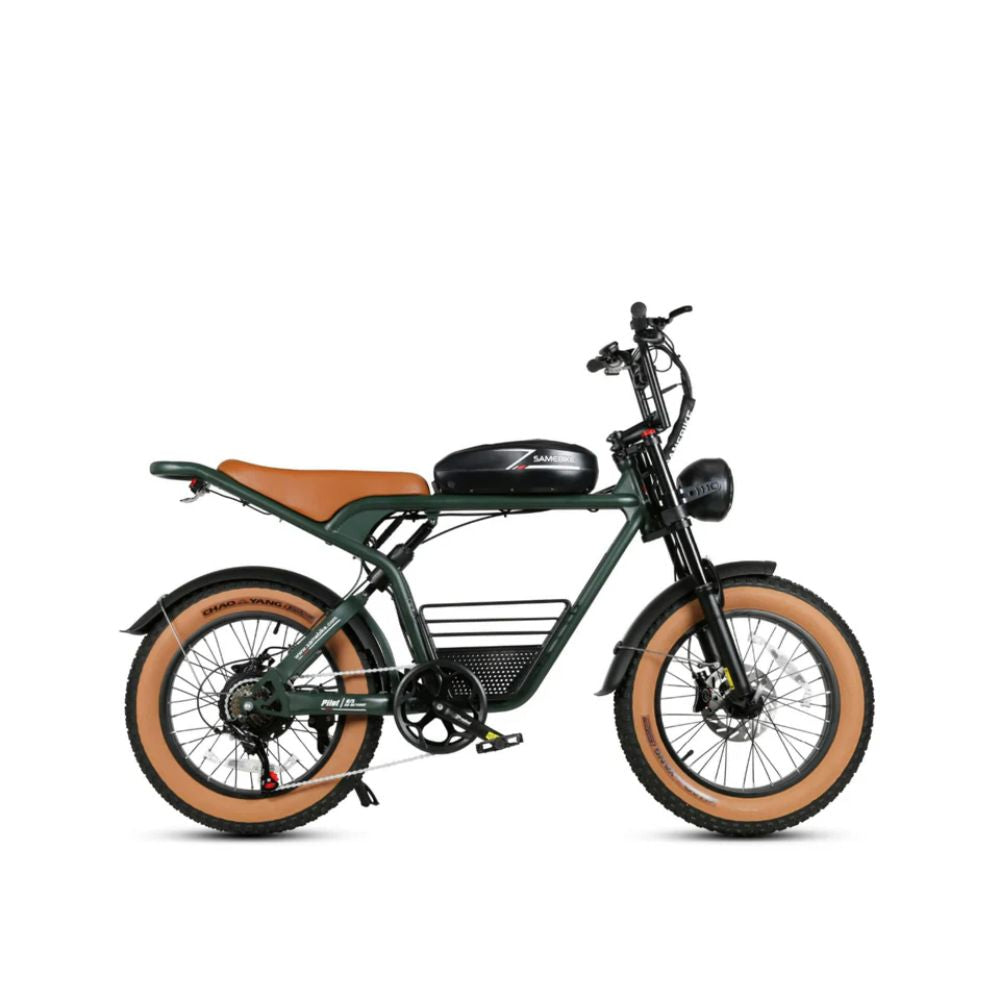

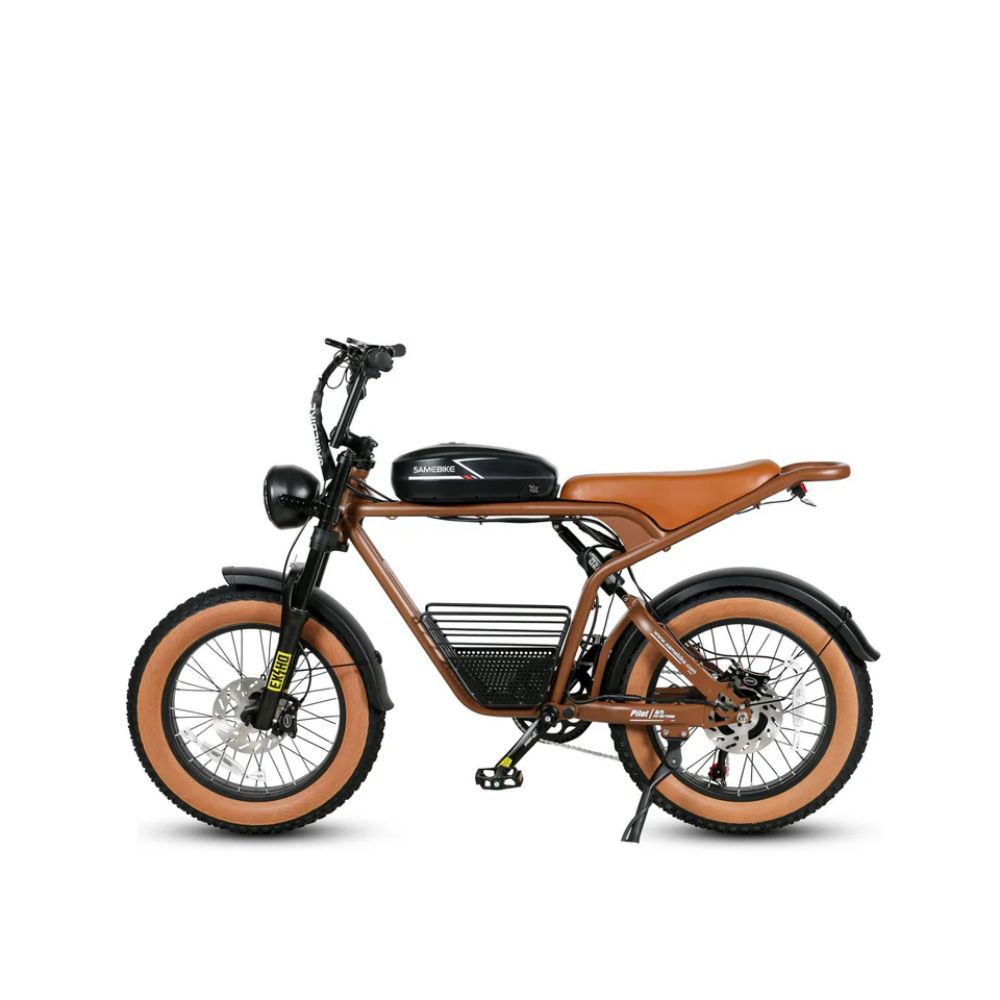

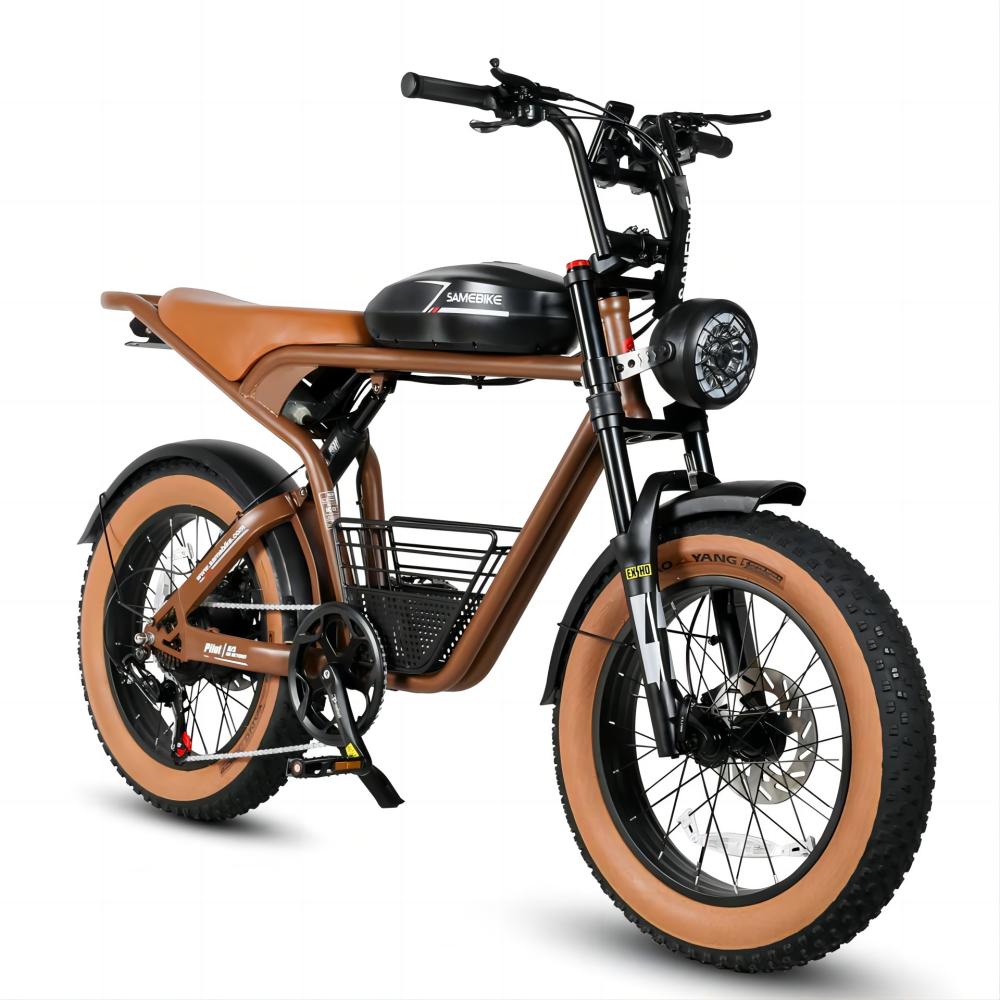

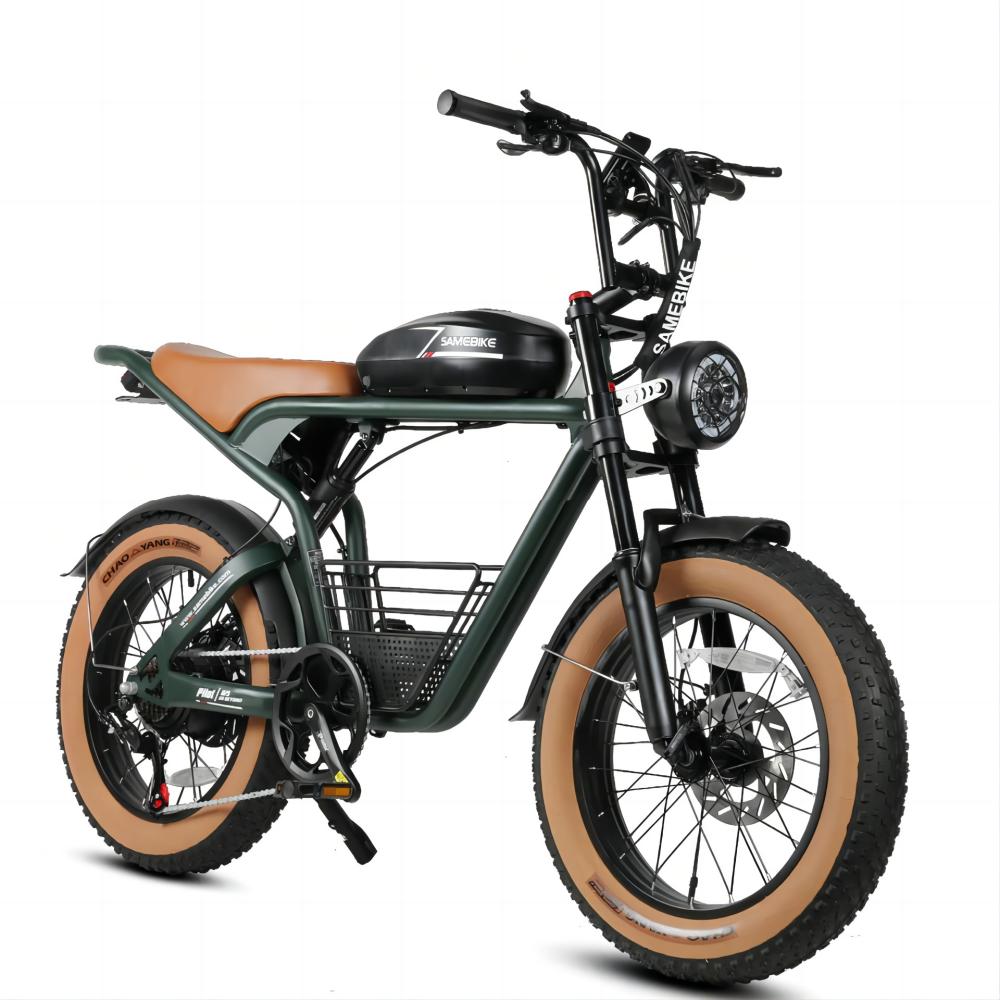

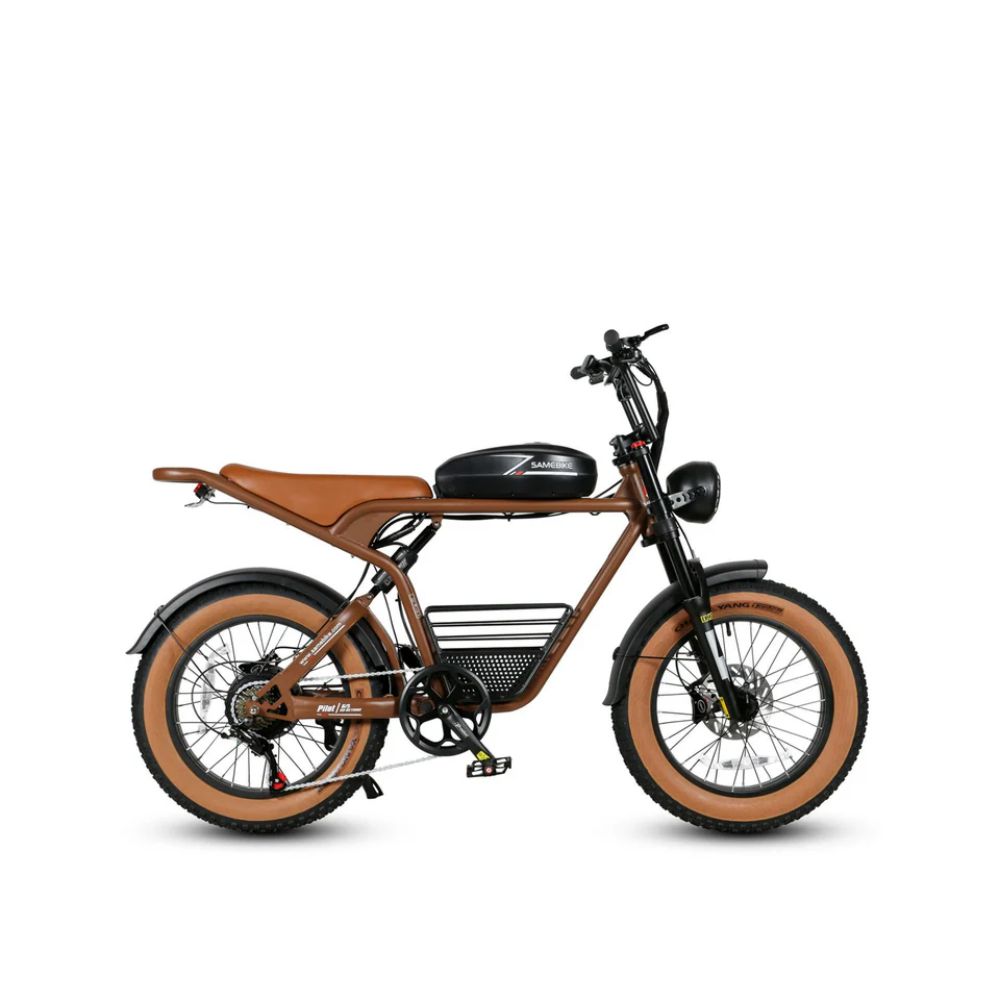

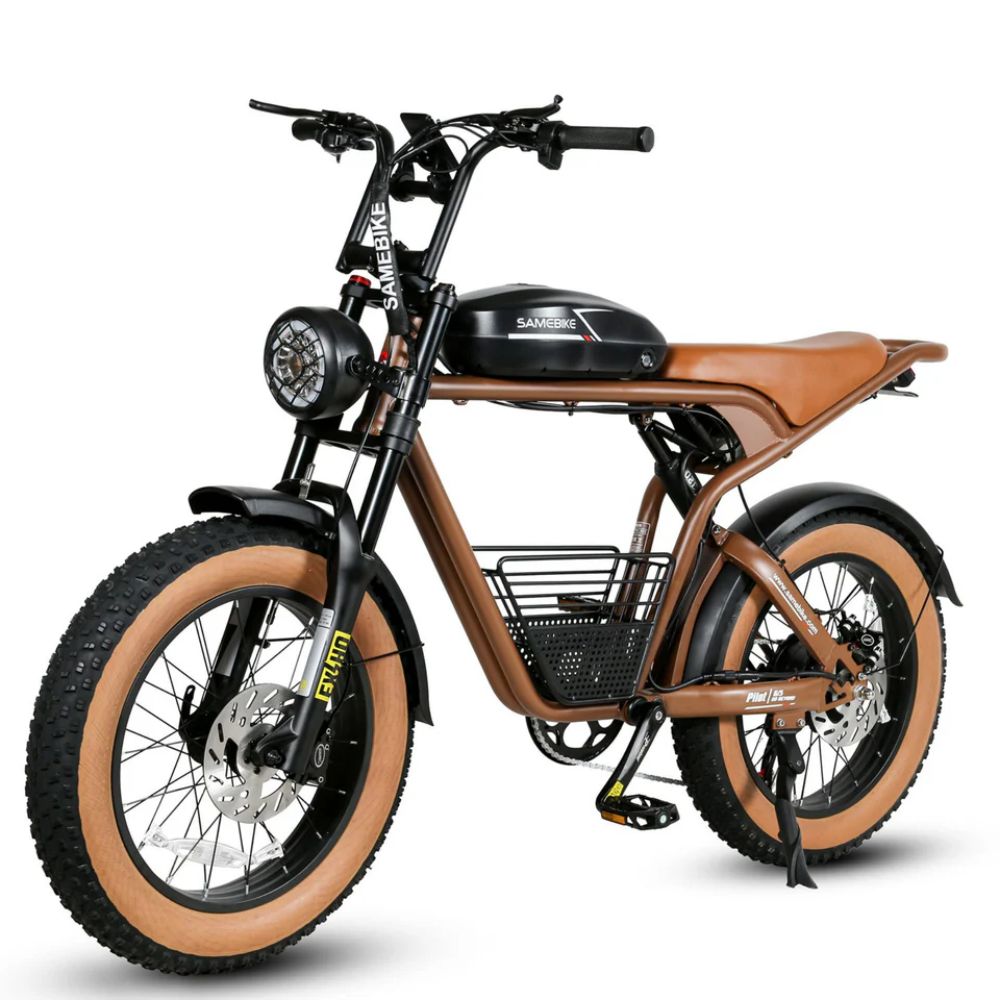

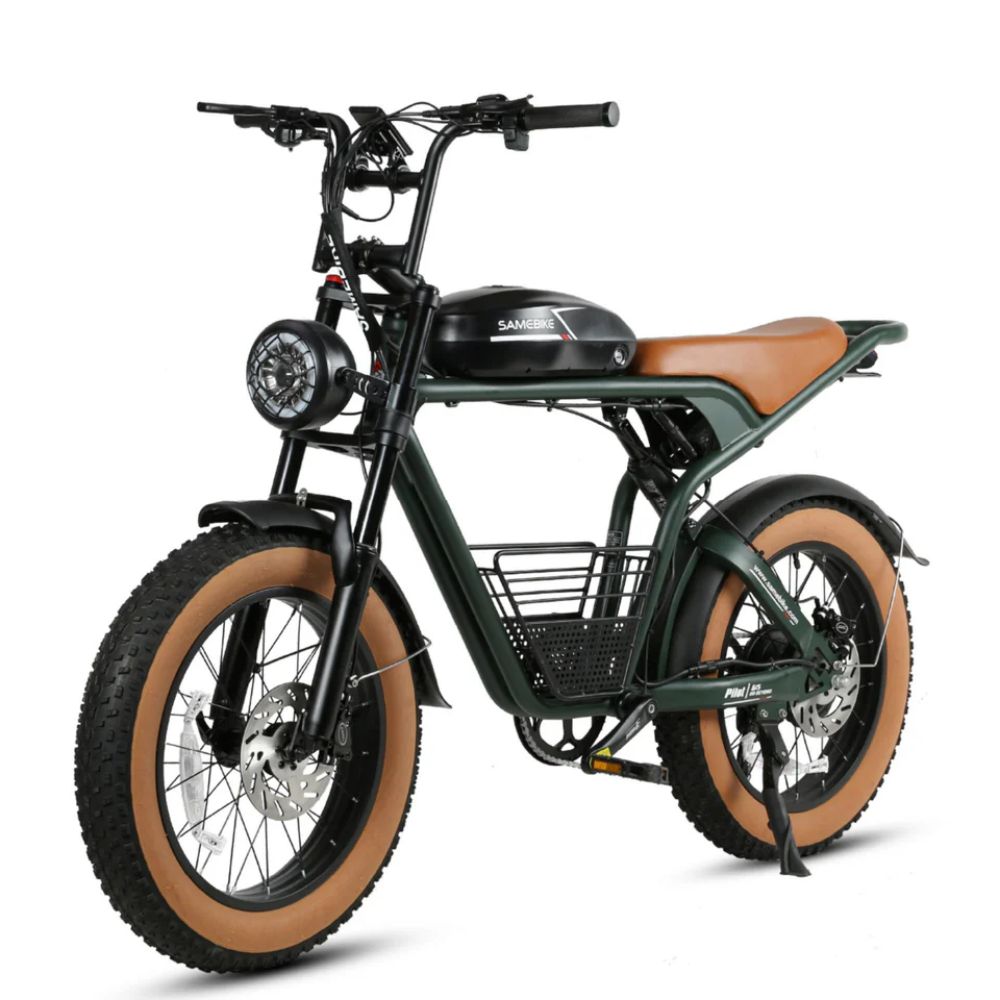

SAMEBIKE Pilot M20 SE 20" Retro Electric Dirt Bike 1000W Motor 48V 18Ah Battery

[DESCRIPTION]

This is an exploration of making electric bikes more fun and different. With the 1,000W high-torque motor and dirt bike design, such as low-slung frame, long-travel suspension, knobby tires, etc. It's expected to be a fun and exciting way to explore the outdoors, push your limits, and experience the thrill of off-road riding.

1000W High-torque DC Hub Motor

For a dirt ebike, riders always expect quick and smooth acceleration. Samebike Pilot's 1000W geared hub motor with 80Nm instant torque will provide a thrilling and responsive ride. Working with the 20"*4.0" fat knobby tires, the Pilot can be ridden on a variety of terrain, from dirt tracks to rocky terrain to steep hills, providing a versatile and adaptable ride.

864Wh Long-lasting Li-ion Battery

Just as important as fueling up your gas tank before a road trip, a good battery is important for your challenging trips and longer routes. The 48V 18Ah large-capacity Lithium-ion battery with MSDS/ UN38.3/ CE certificated 21700 cells, tested to be safe and reliable working indoors or outdoors in 120℉, can ensure enough juice to conquer mountains and hills.

Custom YL-81F LCD Display

A functional computer/ instrument shows the riding information (including speed, miles, battery, gears,) and bike status (such as brake/ walk-mode/ headlight,) on the 3.5" colored LCD screen. The 5V 1A USB-A port integrated into the keyboard can charge your phone when the display is on. And the new display supports a login password, you can still ride the bike even if the key was lost.

Adjustable Front Suspension

The adjustable and lockable magnesium alloy suspension front fork allows for maximum suspension travel of 100mm. Effectively absorbing excessive vibration and bumps, thereby reducing wrist fatigue and discomfort.

1000 Lbs Rear Suspension

High-performance rear suspension can absorb up to 1000 pounds of vibration energy, providing protection for long-distance outdoor cycling.

7-Speed Shifting System

The Shimano chain shifter can smoothly switch between 14-28T 7-speed gears at any time. Allowing pedal-assist models uses in any terrain or even climbing steep slopes doesn`t need motor assistance.

Hydraulic Disc Brakes

Using hydraulic disc brakes with front and rear 180mm motorcycle rotors, Samebike Pilot adopted customized semi-metal brake pads that provide strong braking force and can quickly stop under a load of 330 pounds to respond to emergency situations.

10W High-bright Headlight

The headlights of Samebike Polit can obtain a larger field of view at night or in poor visibility, having for clear identification of obstacles ahead. The reflector of the headlight and built-in electronic horn constantly remind the oncoming bike of your presence, avoiding accidents caused by blurred vision, and thereby protecting your safety.

26" BMX Handlebars

Unlike the common dirt bike, the Samebike Pilot has higher and wider BMX handlebars, making it easier to handle and smoother during turns.

Rubber Non-slip Grips

The retro round grip made of rubber, paired with a thumb throttle and Shimano thumb derailleur shifter, helps you easily control balance and shift gears.

Practical Bottom Tube Basket

Customized iron black lower tube basket, not only can improve the appearance of the standard edition front triangle being too spacious, but also can be making it easy for you to carry more items such as cameras, speakers, party supplies, and even shopping bags filled with food can put in the lower tube basket too.

Brake Signal Tail Light

The red rear tail lights will light up synchronously with the front lights turned on. And when you grip whichever brake the tail light will flash to remind the person behind to maintain a secure distance.

[/DESCRIPTION][SPECIFICATIONS]

General

• Brand: SAMEBIKE
• Model: Pilot M20 SE
• Type: Retro Electric Bike
• Color: Brown/Green

Specifications

• Ebike class: Class 2 electric bike
• Material: Aluminum Alloy
• Tire: 20*4 inch
• Motor: 1000W Hub Motor
• Battery: 48V 18Ah
• Battery Integration: Removable
• Gear Shift System: SHIMANO 7-Speed
• Brake: Hydraulic Disc Brake
• Motor gears: 5 Levels assist
• Sensor: Cadence pedal-assist sensor
• Display: 3.5" Landscape LCD
• Waterproof: IP54
• Gradeability: 40°
• Throttle: Left thumb throttle
• Top Speed: 31mph without limit (50km/h)
• Range: 30miles (50km)/PAS 64miles (100km)
• Charging Time: 4-5h
• Charger: 54.6V 3A DC 2.1mm
• Payload: 150kg
• Recommended height: 5'7" - 6'11" (170-210cm)
• Handlebar height: 44.3" (112.5cm)
• Seat height: 32.5" (Unadjustable MOPED Saddle)

Weight and Size

• Product Weight: 43kg
• Product Size: 175x66x112cm

Package Contents

• 1 x Electric Bike

• 1 x Battery
• 1 x Battery Charger
• 1 x Frame Basket
• 1 x Pedal Set
• 1 x Quick-release Skewer
• 1 x Seat Set
• 1 x Tool Kit
• 1 x User Manual

[/SPECIFICATIONS][MANUAL]

• Owner's Manual
• Display Manual
• Unlock Speed Limit

[/MANUAL]
