The F700-2 is equipped with a 36V 10Ah Li-ion battery pack that complies with EN15194.
Unlike the F700-1 the F700-2’s battery is removable, with more charging options to choose from.
The battery pack is designed with frame integration to optimize the center of gravity, and the built-in BMS battery management system is equipped with overcharging protection, temperature monitoring, and equalization charging functions.
Two riding modes are supported: electric assist mode (PAS 0-5 ) and intelligent power mode ( 1-8 shimano gears).
The vehicle complies with ECE R136 regulation, which sets the electronic speed limit at 25km/h. The range of the vehicle can reach 60-80 kilometers under full charge.
| General | |
|---|---|
| Brand: CMACEWHEEL | Model: F700-2 (removable battery) |
| Type: Electric Mountain Bike | Color: Silvery |
| Specifications | |
|---|---|
| Battery Capacity: 36V 10Ah | Motor Power: 36V 250W |
| Torque: 42N.M | Meter Display: LCD Display |
| Max Speed: 25km/h | Sensor: Torque Sensor |
| Riding Mode: Pedal Assistant (PAS) Pedal |
Max range for pure power: No throttle, pure power assist |
| Max range for assisted mode: 60-80km | Frame Material: Aluminum Alloy |
| Max climbing grade: 30° | Wheel & Tire: CST 700*38C |
| Braking System: Hydraulic Disc Brakes | Gears/Variable Speed: Shimano 8 speed |
| Suspension: Shock absorber seat tube | Charger: 42V 2A |
| Charging Time: About 5H | Max load: 100KG |
| Handlebar Height: 108cm | Saddle height: 94cm |
| Suitable Height: 170cm+ | Lights: Headlight + Rear reflector |
| Mudguard: Front and Rear | Waterproof: IP65 |
| Battery Weight: 3.2kg | Net Weight: 21.1kg |

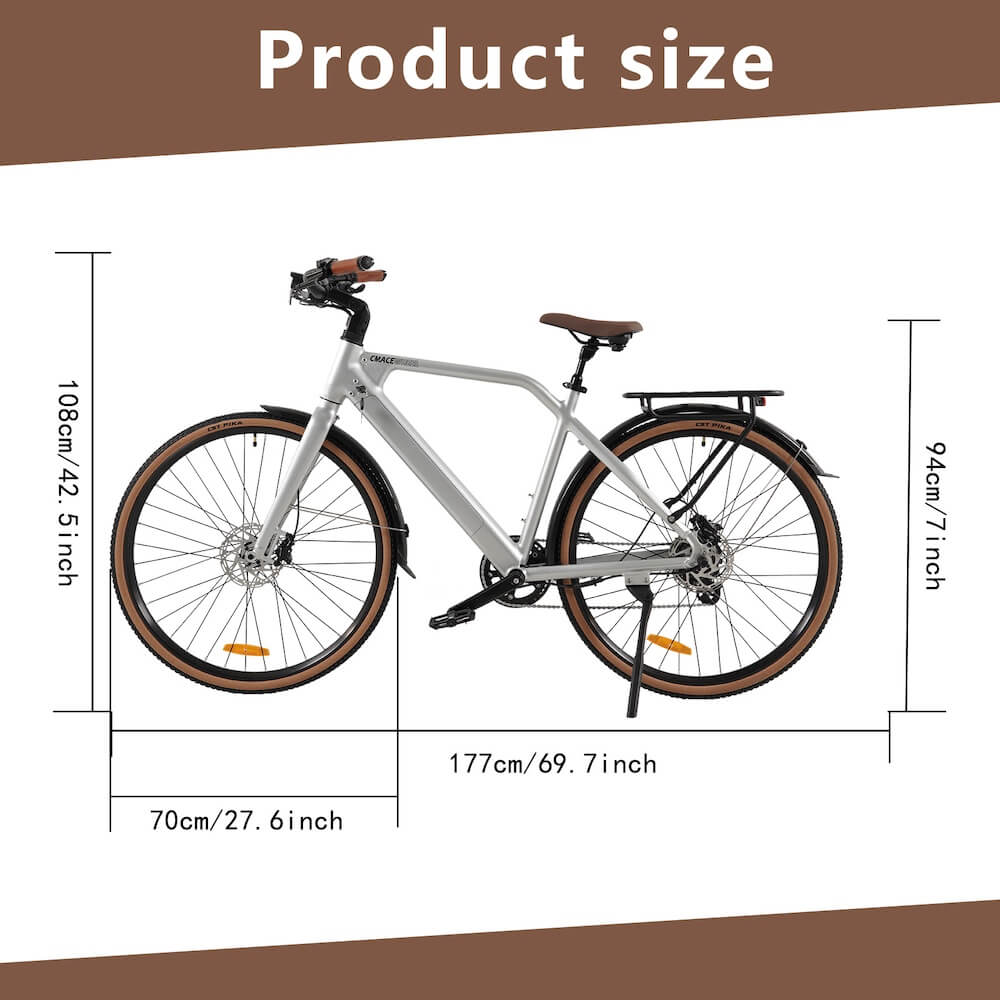

| Gross Weight: 28.2kg | Full Size: 177*70*108cm |
| Package Size: 142*24*84cm | |
| Package Contents | |
|---|---|
| Charger | Tool set |
| Spoke wheel reflector | Mobile phone holder |
| Hand ringing bell | Foot pedals |
| Rear tailstock (pre installed) | |
